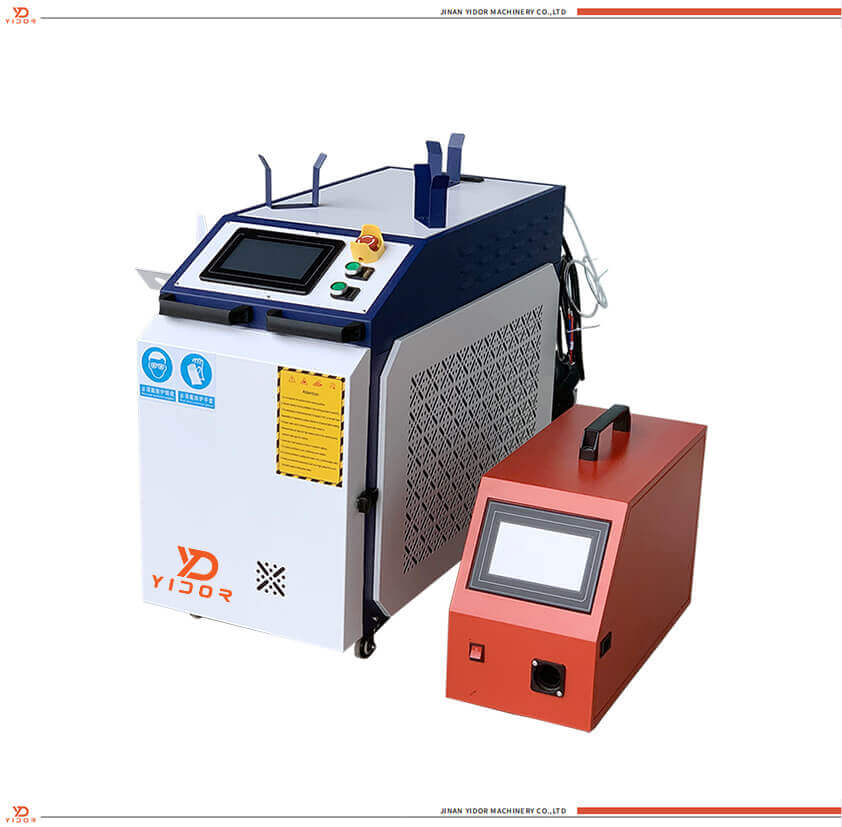

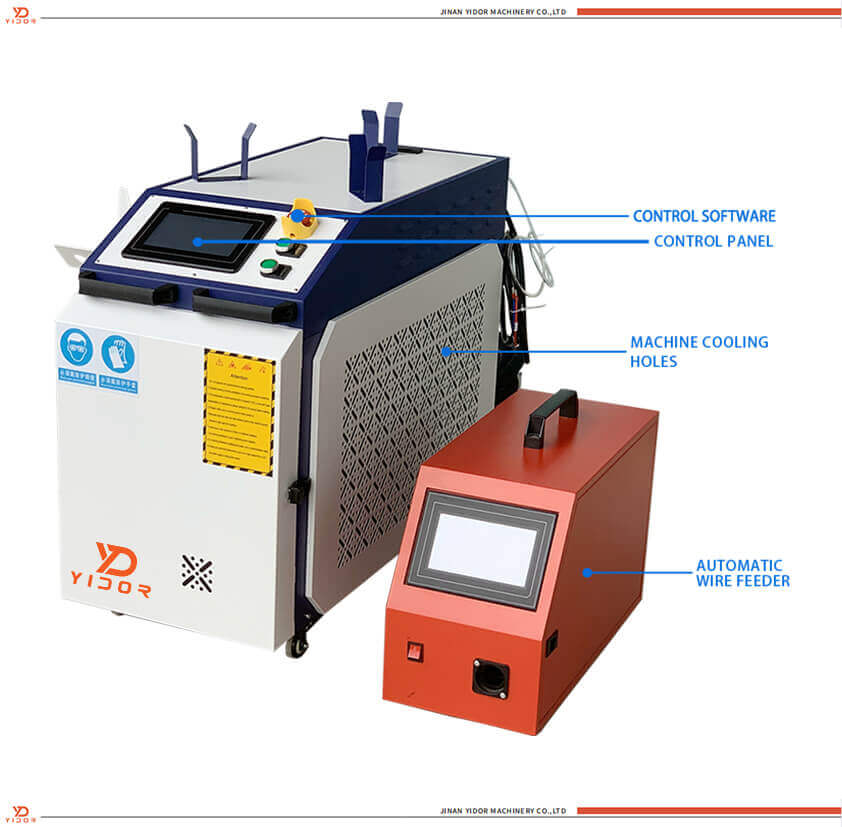

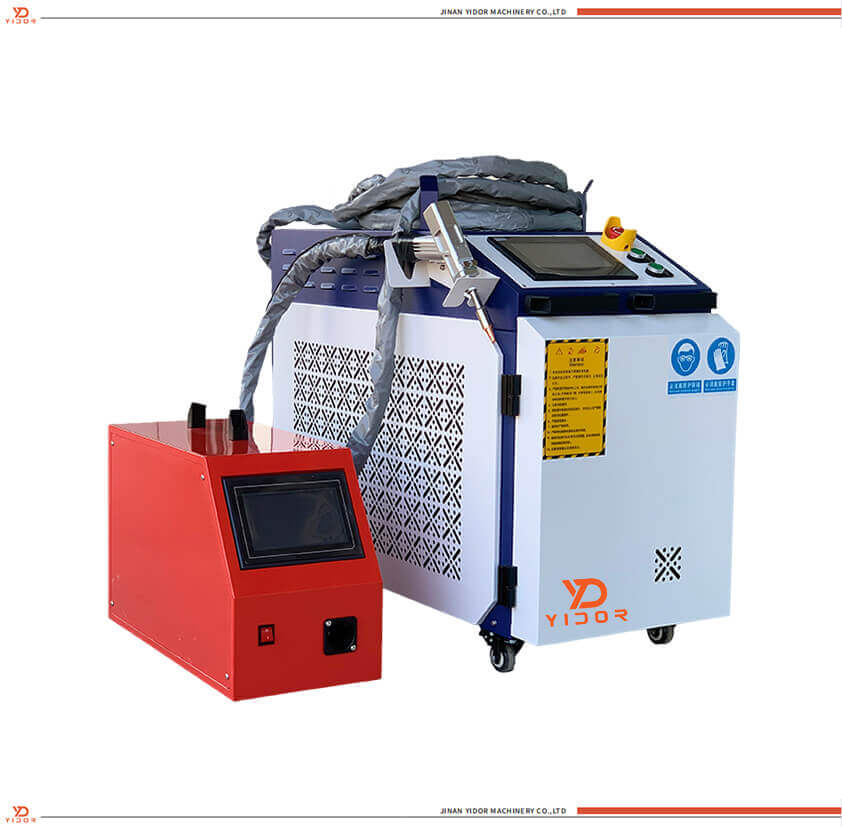

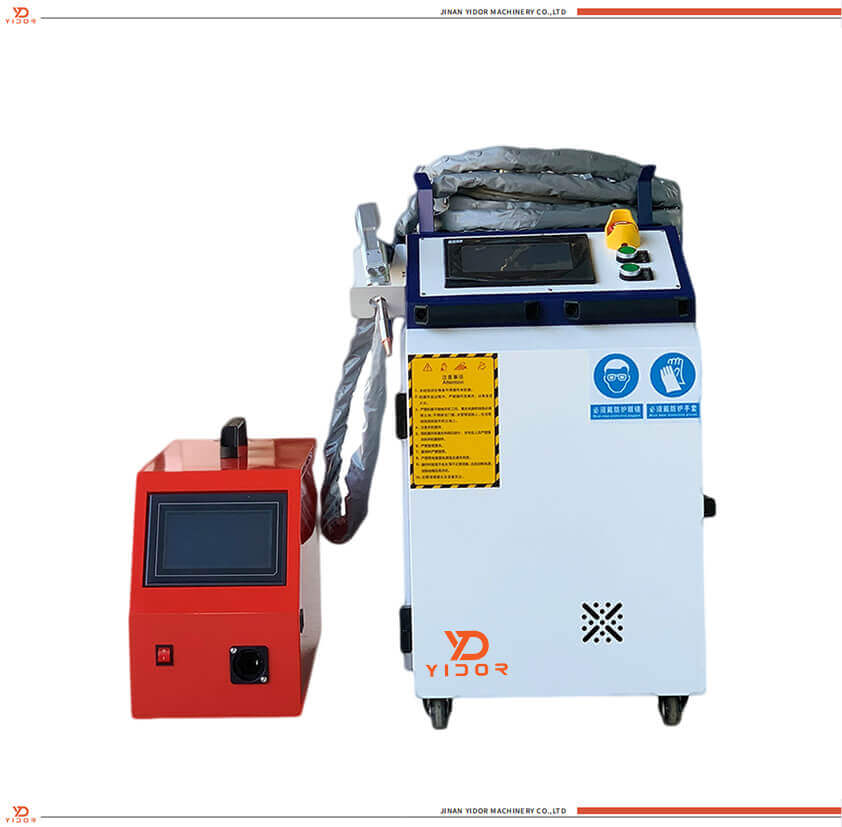

YDW Laser Welding Machine

Catalogue

Video

  • Share

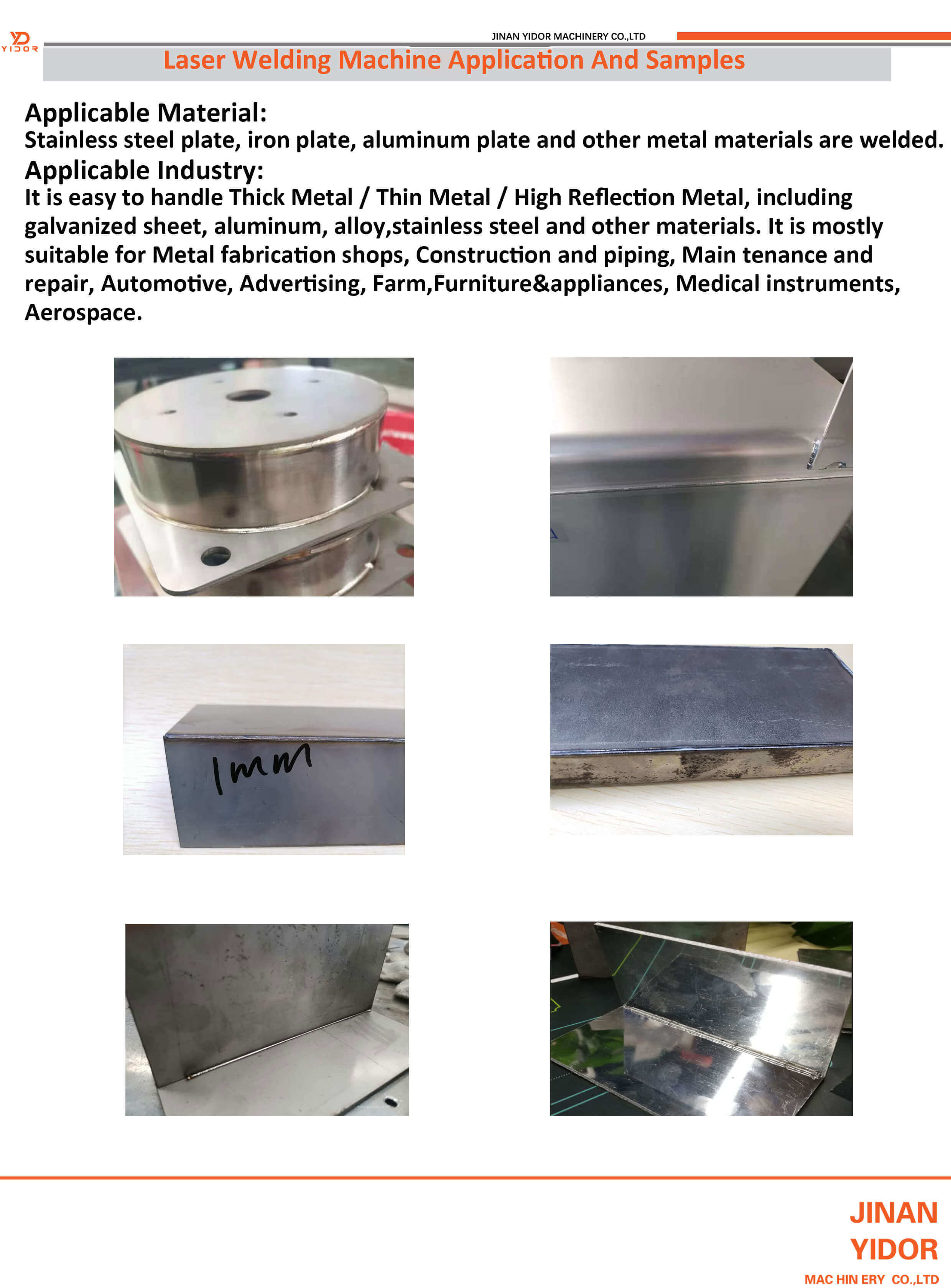

Fiber Laser Welding Machine is a new type high-power, high-end continuous welding tool which adopts a high-quality fiber laser source to produce a fiber optic beam. After transmission processing, the light is focused on the workpiece to achieve continuous welding. It avoids the two thresholds of thermal strain and post-treatment, and is environmentally friendly and pollution-free, greatly improving the joint strength and quality of welding. Replacing the previously fixed light path with a hand-held type not only facilitates the welding of molds, advertising characters, kitchen utensils, doors and windows, etc., but also makes laser welding possible in outdoor operations, which indicates that the traditional welding of electric welding, argon arc welding, etc. will be replaced by laser welding.

TECHNICAL PARAMETERS

Laser type Fiber laser
Equipment model YDW-1500/YDW-2000/YDW-3000
Laser power 1000W/2000W/3000W

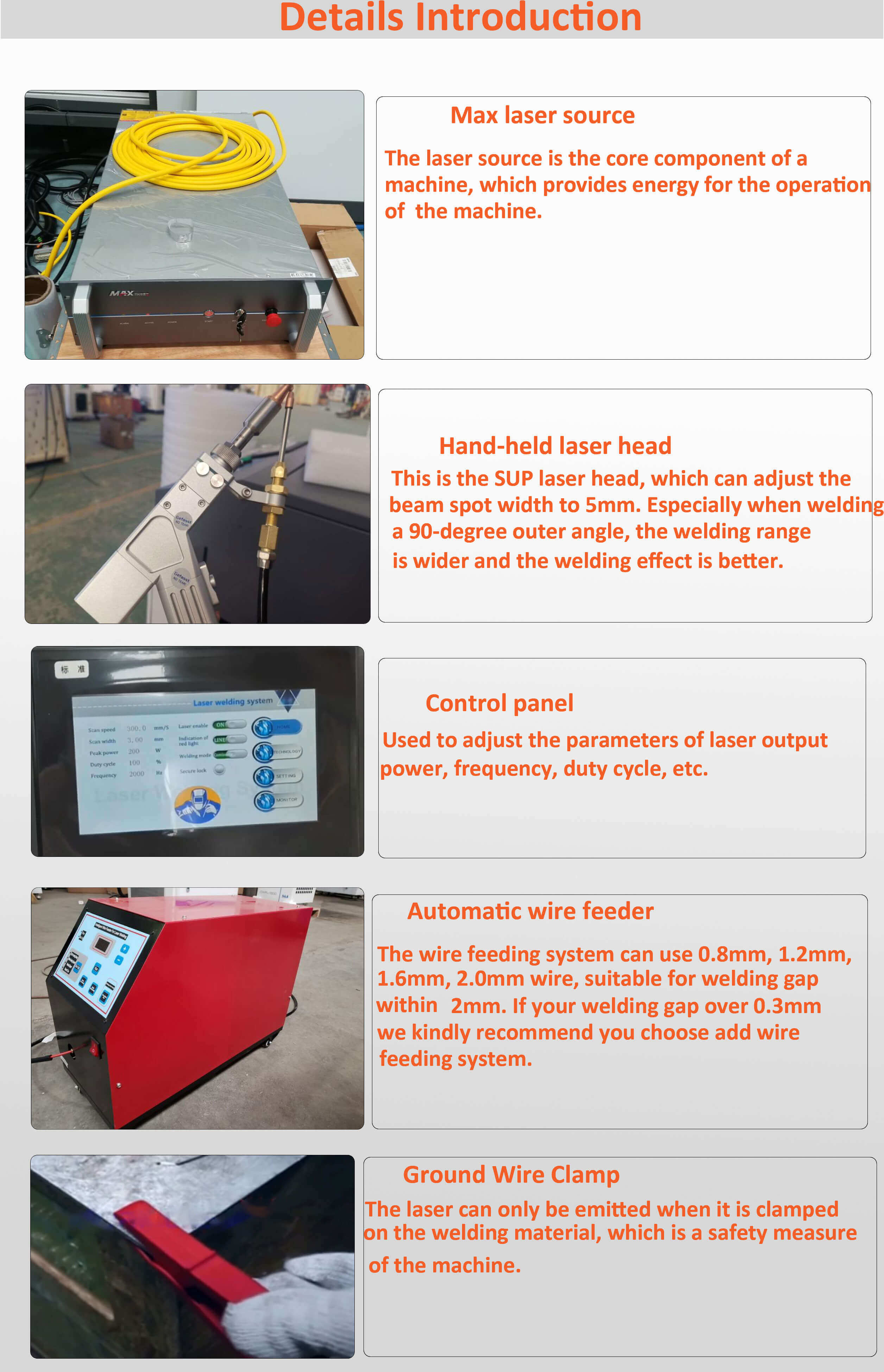

Laser source Max/Raycus/RECI Laser source
Laser head CHAO QIANG WEI YE SUP 23T laser head
Water chiller HANLI industrial water chiller
Wire feeder Include
Fiber laser optic length 10m
Laser wavelength 1080±5nm
Fiber diameter 50μm
Spot size ф0.2-1.8mm
Output connector QBH
Red light display Yes
Machine voltage Single-phase 220V/380V
